Linear Heat Detection Cable

Products » Fire Detection Systems » Conventional Detectors

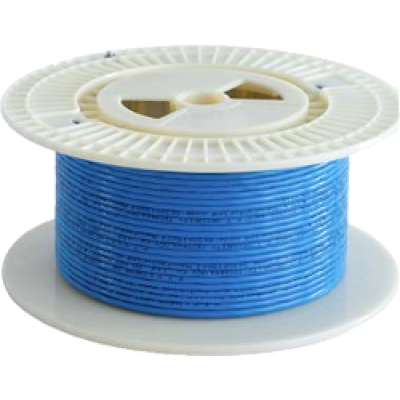

Pertronic Pertronic-Anbesec LHD Cable

Pertronic-Anbesec LHD Cable

ENQUIRE ABOUT THIS PRODUCT

Pertronic-Anbesec linear heat detection (LHD) cable is a heat sensing device with a fixed temperature alarm threshold.

The cable consists of two twisted steel wires separated by heat sensitive insulation. The insulation melts at a pre-determined temperature, allowing the wires to contact each other and create a short circuit. When correctly connected to a Pertronic fire panel, the LHD cable triggers an alarm signal when the insulation melts.

LHD cable sensitivity is not affected by installation temperature or the length of cable heated by a fire.

Features

  • Available with integral catenary wire
  • Compatible with Pertronic fire panels
  • No adjustments required
  • Supplied on 200 metre drums
  • UL listed under “UL 521 Heat Detectors for Fire Protective Signaling Systems”

NOTE: Anbesec Linear Heat Detection (LHD) Cable is not ActivFire listed. However, it is UL listed under UL 521

Ordering Information

Product Code

Description

Product Code:
Description:
Product Code:
Description:
Product Code:
Description:
Product Code:
Description:
Product Code: LHDSIC-68C-200
Description: Linear Heat Detection Standard Indoor PVC Sheath Cable NMS1001-68C in 200m drums
Product Code: LHDCATIC-68C-200
Description: Linear Heat Detection Catenary Indoor PVC Sheath Cable NMS1001-68C-G in 200m drums
Product Code: LHDCATIC-68C-400
Description: Linear Heat Detection Catenary Indoor PVC Sheath Cable NMS1001-68C-G in 400m drums
Product Code: LHDSIC-68C-500
Description: Linear Heat Detection Standard Indoor PVC Sheath Cable NMS1001-68C in 500m drums
Product Code: LHDSIC-88C-200
Description: Linear Heat Detection Standard Indoor PVC Sheath Cable NMS1001-88C in 200m drums
Product Code: LHDCATIC-88C-200
Description: Linear Heat Detection Catenary Indoor PVC Sheath Cable NMS1001-88C-G in 200m drums
Product Code: LHDCATIC-88C-400
Description: Linear Heat Detection Catenary Indoor PVC Sheath Cable NMS1001-88C-G in 400m drums
Product Code: LHDSIC-88C-500
Description: Linear Heat Detection Standard Indoor PVC Sheath Cable NMS1001-88C in 500m drums
